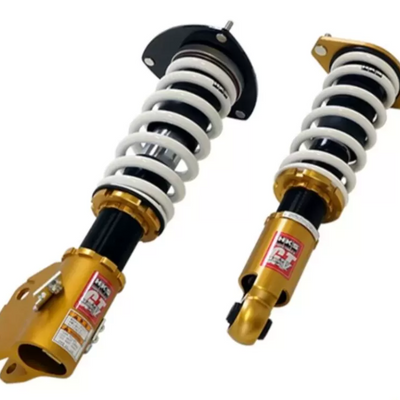

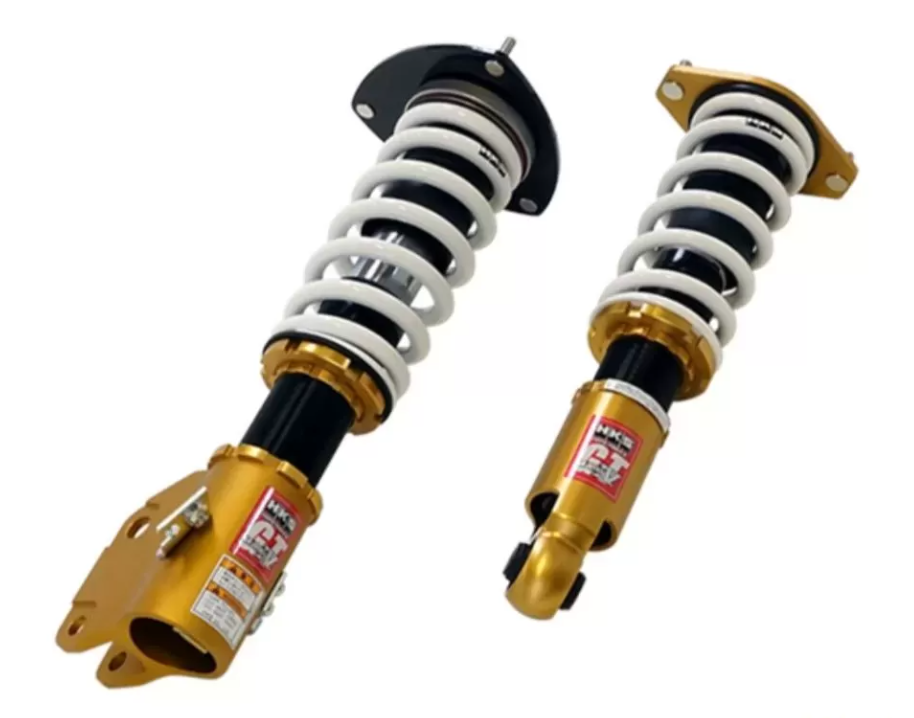

SUBARU WRX 08-14 - HKS HIPERMAX IV GT COILOVER

HKS HIPERMAX IV GT GRE FULL KIT

Natural steering feeling" so that a driver can trace the line as desired was pursued, and smooth cornering as STI's unique handling characteristic. Focusing on driving stability during cornering to match the vehicle's characteristics, supple damper movement can stabilize the vehicle body movement so the tires can continuously contact even on rough road surfaces.

The stock rear suspension's stiffness was improved so driving comfort can be maintained under long-distance driving maintaining its sportiness. Utilizing the helper springs in both front and rear dampers enables to secure the stroke of the extension side as possible.

Specs (Front/Rear):

• Damping force adjustment: 30 steps / 30 steps
• Upper mount: Rubber / Rubber
• Inverted/Normal type: Inverted / Normal
• Damper/Spring layout: Coilover / Coilover
• Spring rate change at factory: Possible / Possible
• Helper spring (Spring rate N/mm): ( 4.7 ) / ( 4.7 )

Kit information (Front/Rear):

• Spring rate N/mm(kgf/mm): 79 ( 8 ) / 59 ( 6 )
• Free height (mm): 220 / 170
• Spring type: Straight Barrel type / Straight
• Recommended range to change spring rate N/mm(kgf/mm): 20 ( 2 ) / 20 ( 2 )
• Damping force (Rebound/Damping)N: 971 / 412 , 392 / 147
• Default position of dial: 15 / 15
• Remaining damper stroke (Rebound/Damping)mm: 45 / 68 / 49 / 67

Fitments:

• Subaru Impreza WRX EJ25 2008-2014

Notes:

• Images are for representation only.
